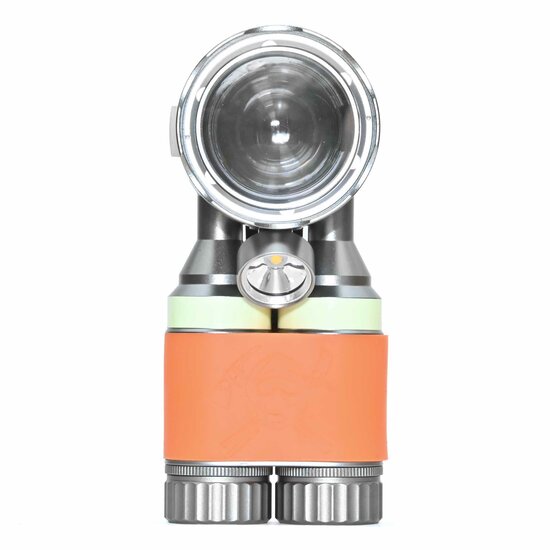

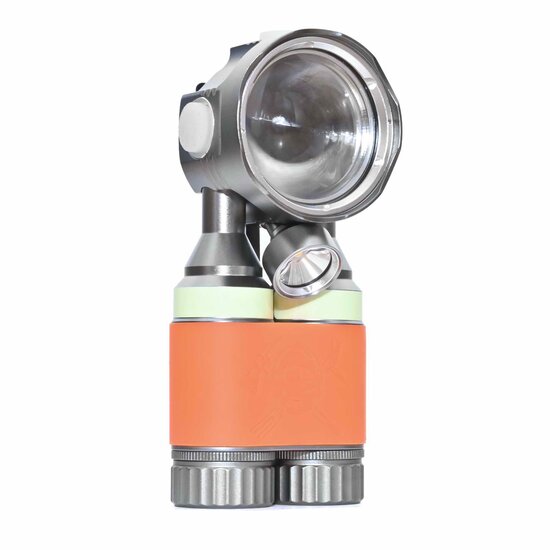

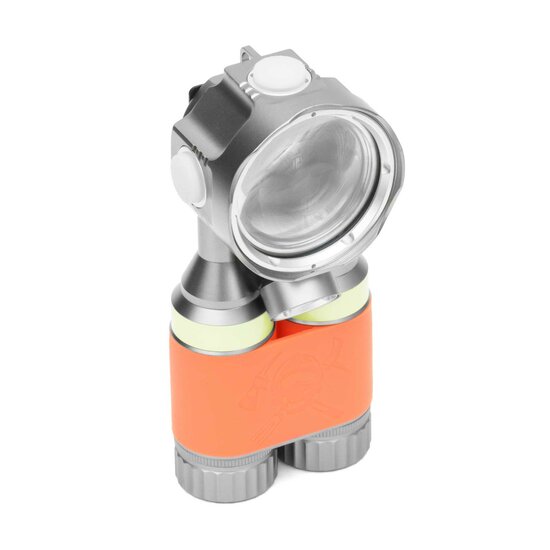

The LS-A2M flashlight is a powerful warm-white LED dual beam chest flashlight for firefighters and rescuers.

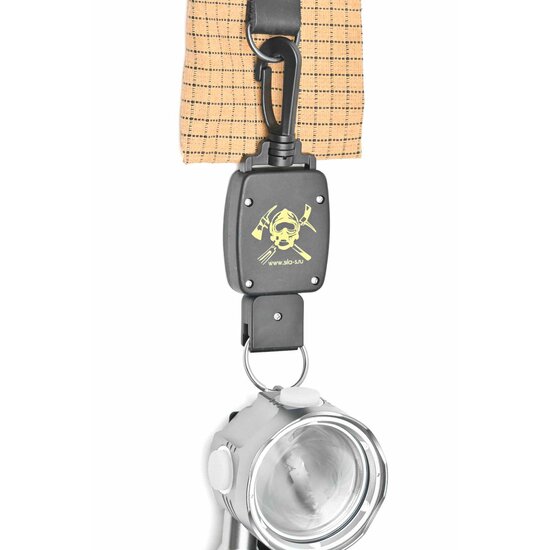

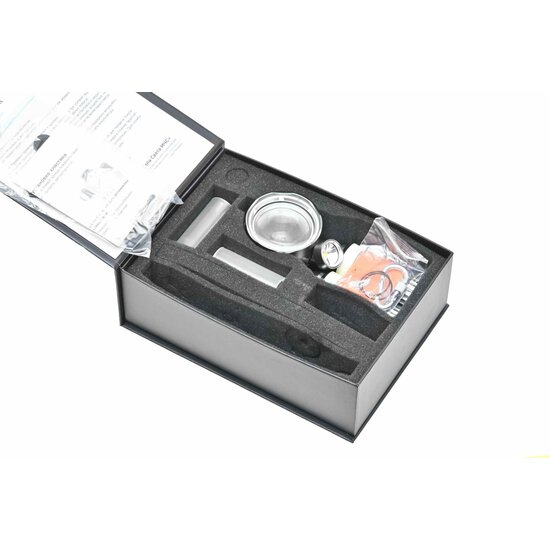

Package: if you choose the option “only flashlight”, the package will include the flashlight, instructions, a leather half-belt designed for a turnout gear, two battery cassettes, battery tubes, spare silicone O-rings. Rechargeable batteries and charger are not included! If batteries, charger and retractor are required - these options must be specified separately.
The flashlight was designed as a modified version of LS-A2 flashlight with upgrades:
- Separate button for each LED.

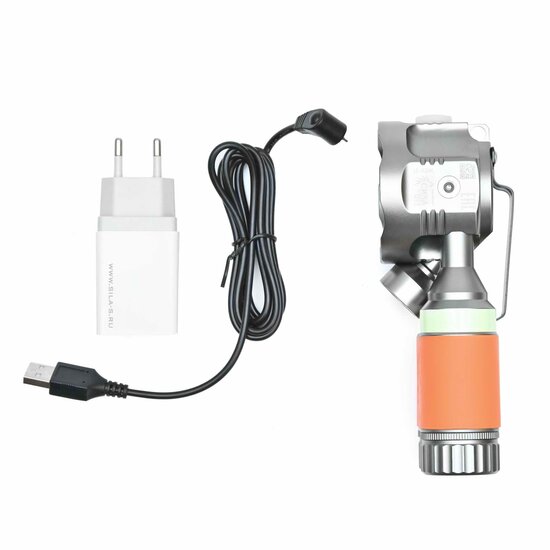

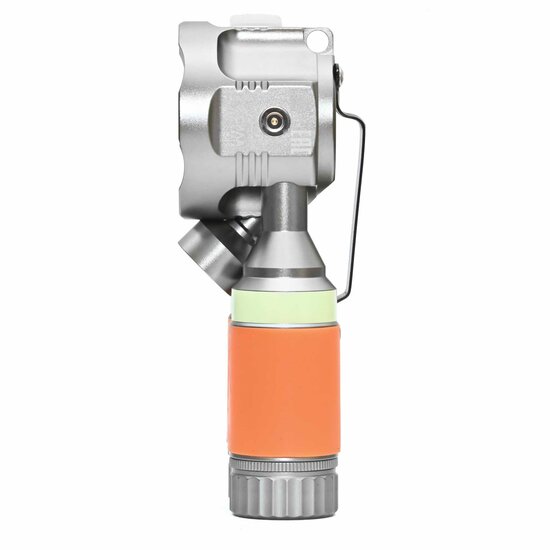

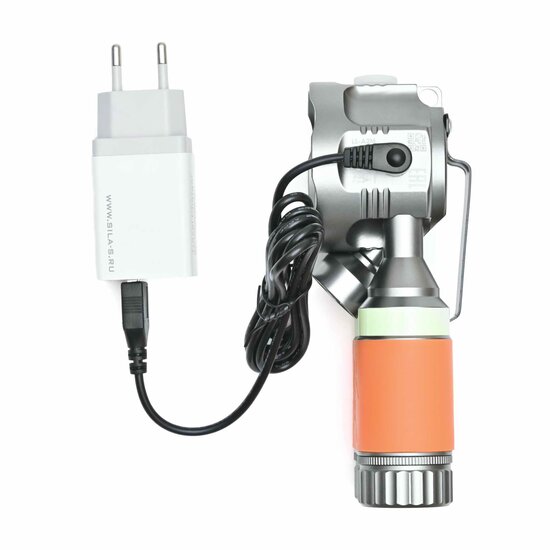

- Magnet charging socket allowing to charge batteries without removing them out of the flashlight.

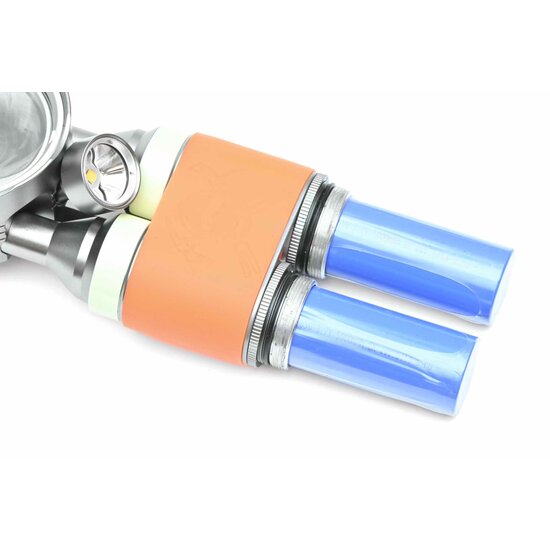

- Battery compartments are compatible with 26650 batteries with double capacity (5000 mAh).
- Increased power of the main LED – 10 W (LS-A2 – 5 W).
Advanced Cree XP-L HI LED provides maximum light intensity. Using a Fresnel lens allowed to significantly reduce and lighten the body of the flashlight while maintaining its performance. There is an additional protective glass on top of the Fresnel lens.

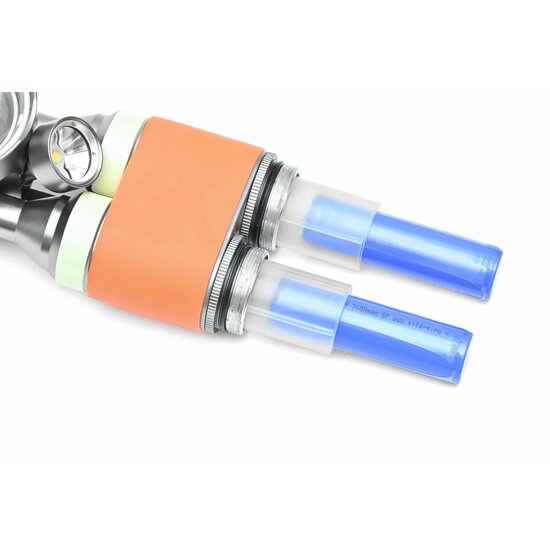

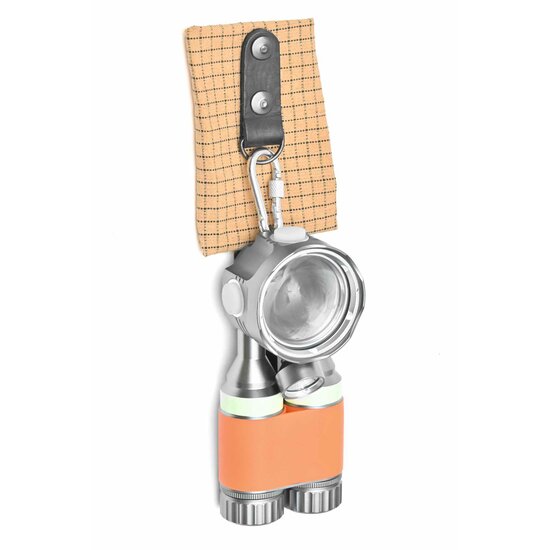

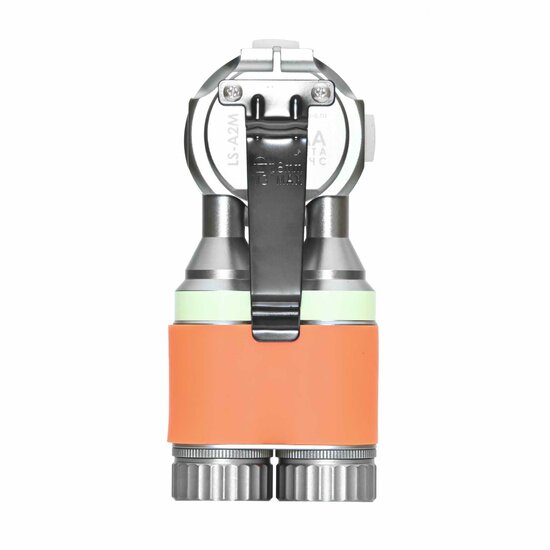

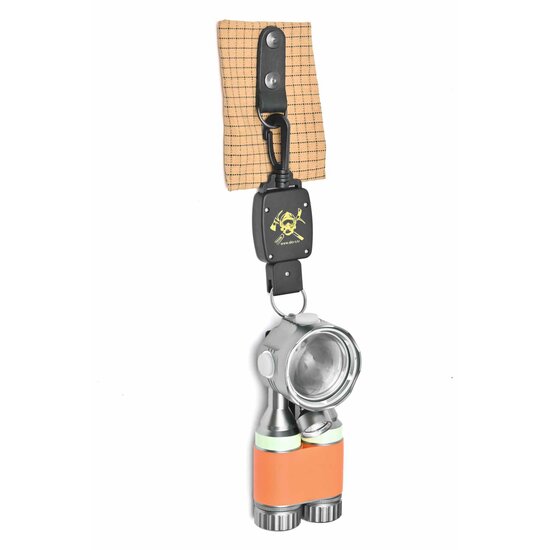

The battery compartments are arranged in parallel rather than sequentially, allowing the flashlight to be shortened while creating a wide rear part. The wide rear part of the flashlight and the enlarged metal clip are able to securely fix the flashlight on a turnout gear. There is a special 6 mm hole cut in the body for extra fixation with a spring hook.
The use of parallel battery compartments ensures the fault tolerance of the flashlight in relation to the batteries: if one battery fails, the flashlight will continue to work from the second battery. The use of strong coil springs at each battery eliminates the loss of electrical contact when shaking (this caused spontaneous shutdown of the previous model of the flashlight).
Bright orange silicone overlay on the body of the flashlight makes LS-A2M more noticeable. Using a silicone pad on the button (as opposed to a metal button) eliminates icing and freezing of the flashlight button.
The flashlight is equipped with leather half-belt which allows you to fix the flashlight on a turnout gear in case the appropriate fastening elements are missing.
Flashlight characteristics | |
Power | 20 W |
Modes | 3 power modes: full, middle and low |
Runtime (full power mode) | 3 h - spot LED, 3 h - flood LED, 1 h - both LEDs (measured with 5000 mAh rechargeable batteries) |
Runtime (medium power mode) | 28 h - spot LED, 28 h - flood LED, 14 h - both LEDs (measured with 5000 mAh rechargeable batteries) |
Runtime (low power mode) | 125 h - spot LED, 125 h - flood LED, 80 h - both LEDs (measured with 5000 mAh rechargeable batteries) |
Waterproof | IP67 |

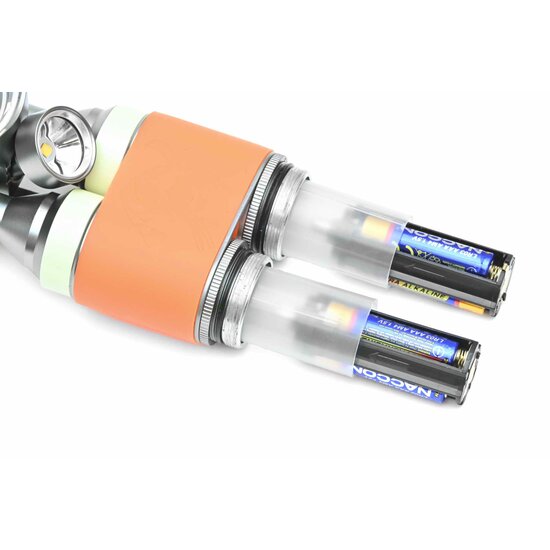

Battery type | 2 Li-ion batteries 18650, 2 Li-ion batteries 26650 or 6 batteries AAA |
Optics | Fresnel lens and reflector |
Body material | aircraft-grade aluminum (Avial) |
Switch | 2 spot-buttons on the head of the flashlight - for each LED separately |
Photometric characteristics | |
Max beam angle | 68.2° |
Min beam angle | 2.9° |
Beam distance | 499 m |
Color temperature | 3390 K |
Light | Warm |
Light output | 844 lm |
Peak beam intensity | 62264 cd |
Dimensions and weight | |
Length | 161 mm |
Width | 72 mm |
Depth | 58 mm |
Weight | 365 g |
